Horn Antennas

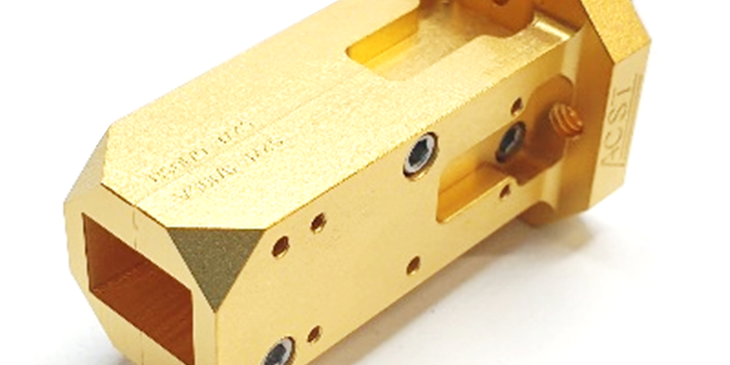

Pyramidal Horn Antennas and Diagonal Horn Antennas
ACST currently offers Waveguide Antennas as „Pyramidal Horn Antennas“ and „Diagonal Horn Antennas“ in their corresponding waveguide bands into the THz range.
Custom values for antenna gain up to 25 dB are available upon request.
Catalog Models Broadband Pyramidal Horn Antennas
| Model Number | Delivery Status | Data Sheet | Input Frequency Range (GHz) | Input Ports |
|---|---|---|---|---|
| 527R | - | 50-75 | WR-15 | |
| 527S | - | 60-90 | WR-12 | |
| 527A | - | 75-110 | WR-10 | |
| 527B | - | 90-140 | WR-8 | |
| 527C | - | 110-170 | WR-6.5 | |
| 527D | - | 140-220 | WR-5.1 | |
| 527E | - | 170-260 | WR-4.3 | |
| 527F | - | 220-330 | WR-3.4 | |
| 527G | - | 260-400 | WR-2.8 | |
| 527H | - | 325-500 | WR-2.2 | |
| 527J | - | 400-600 | WR-1.9 | |
| 527K | - | 500-750 | WR-1.5 | |
| 527L | - | 600-900 | WR-1.2 | |
| 527M | - | 750-1100 | WR-1.0 | |
| 527N | - | 900-1400 | WR-0.8 | |
| 527O | - | 1100-1700 | WR-0.65 | |
| 527P | - | 1400-2200 | WR-0.51 |
ACST GmbH reserves the right to make changes to the information contained herein without notice.
